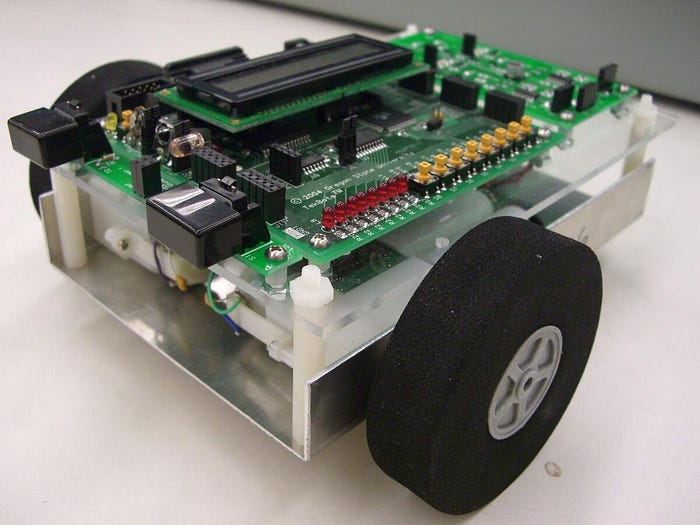

In this tutorial, we will learn how to create a state space model for a mobile robot. Specifically, we’ll take a look at a type of mobile robot called a differential drive robot. A differential drive robot is a robot like the one on the cover photo of this post, as well as this one below. It is called differential drive because each wheel is driven independently from the other.
Table of Contents
- Prerequisites
- What is a State Space Model?
- Deriving the Equations
- Converting the Equations to a State Space Model
- How to Calculate the A Matrix
- How to Calculate the B Matrix
- Putting It All Together
- Adding Process Noise
- Python Code Example for the State Space Model
Prerequisites
- Basic linear algebra
- You understand what a matrix and a vector are.
- You know how to multiply two matrices together.
- You know what a partial derivative is.
- Optional: Python 3.7 or higher (just needed for the last part of this tutorial)
There are a lot of tutorials on YouTube if you don’t have the prerequisites above (e.g. Khan Academy).
What is a State Space Model?
A state space model (often called the state transition model) is a mathematical equation that represents the motion of a robotic system from one time step to the next. It shows how the current position (e.g. X, Y coordinate) and orientation (yaw (heading) angle γ) of the robot in the world is impacted by changes to the control inputs into the robot (e.g. velocity in meters per second…often represented by the variable v).
Note: In a real-world scenario, we would need to represent the world the robot is in (e.g. a room in your house, etc.) as an x,y,z coordinate grid.
Deriving the Equations

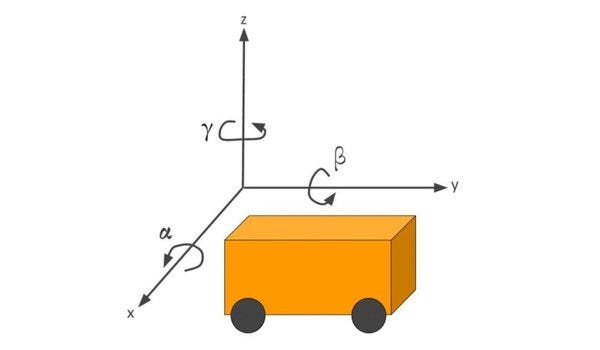

Consider the mobile robot below. It is moving around on the flat x-y coordinate plane.

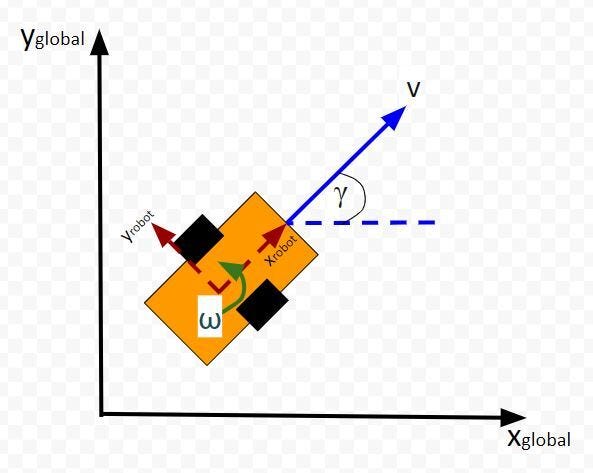

Let’s look at it from an aerial view.
What is the position and orientation of the robot in the world (i.e. global reference frame)? The position and orientation of a robot make up what we call the state vector.
Note that x and y as well as the yaw angle γ are in the global reference frame.

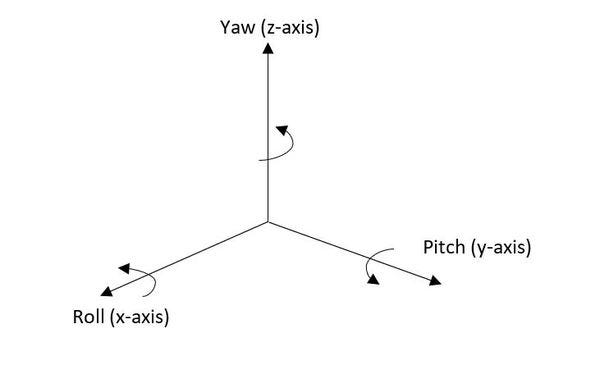

The yaw angle γ describes the rotation around the z-axis (coming out of the page in the image above) in the counterclockwise direction (from the x axis). The units for the yaw angle are typically radians.
ω is the rotation rate (i.e. angular velocity or yaw rate) around the global z axis. Typically the units on this variable is radians per second.
The velocity of the robot v is in terms of the robot reference frame (labeled xrobot and yrobot).

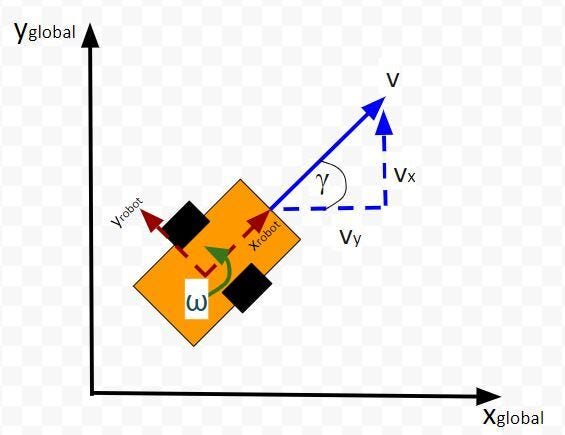

In terms of the global reference frame we can break v down into two components:
- velocity in the x direction vx
- velocity in the y direction vy.
In most of my applications, I express the velocity in meters per second.
Using trigonometry, we know that:
- cos(γ) = vx/v
- sin(γ) = vx/v
Therefore, with respect to the global reference frame, the robot’s motion equations are as follows:
linear velocity in the x direction = vx = vcos(γ)
linear velocity in the y direction = vy = vsin(γ)
angular velocity around the z axis = ω
Now let’s suppose at time t-1, the robot has the current state (x position, y position, yaw angle γ):
We move forward one timestep dt. What is the state of the robot at time t? In other words, where is the robot location, and how is the robot oriented?
Remember that distance = velocity * time.
Therefore,
Converting the Equations to a State Space Model
We now know how to describe the motion of the robot mathematically. However the equation above is nonlinear. For some applications, like using the Kalman Filter (I’ll cover Kalman Filters in a future post), we need to make our state space equations linear.
How do we take this equation that is nonlinear (note the cosines and sines)…
…and convert it into a form that looks like the equation of a line? In mathematical jargon, we want to make the equation above a linear discrete-time state space model of the following form.
where:
xt is our entire current state vector [xt, yt,γt] (i.e. note xt in bold is the entire state vector…don’t get that confused with xt, which is just the x coordinate of the robot at time t)
xt-1 is the state of the mobile robot at the previous timestep: [xt-1, yt-1,γt-1]
ut-1 represents the control input vector at the previous timestep [vt-1, ωt-1] = [forward velocity, angular velocity].
I’ll get to what the A and B matrices represent later in this post.

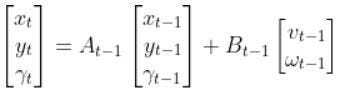

Let’s write out the full form of the linear state space model equation:
Let’s go through this equation term by term to make sure we understand everything so we can convert this equation below into the form above:
How to Calculate the A Matrix
A is a matrix. The number of rows in the A matrix is equal to the number of states, and the number of columns in the A matrix is equal to the number of states. In this mobile robot example, we have three states.
The A matrix expresses how the state of the system [x position,y position,yaw angle γ] changes from t-1 to t when no control command is executed (i.e. when we don’t give any speed (velocity) commands to the robot).
Typically a robot on wheels only drives when the wheels are commanded to turn. Therefore, for this case, A is the identity matrix (Note that A is sometimes F in the literature).
In other applications, A might not be the identity matrix. An example is a helicopter. The state of a helicopter flying around in the air changes even if you give it no velocity command. Gravity will pull the helicopter downward to Earth regardless of what you do. It will eventually crash if you give it no velocity commands.
Formally, to calculate A, you start with the equation for each state vector variable. In our mobile robot example, that is this stuff below.
Our system is expressed as a nonlinear system now because the state is a function of cosines and sines (which are nonlinear trigonometric operations).

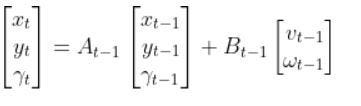

To get our state space model in this form…
…we need to “linearize” the nonlinear equations. To do this, we need to calculate the Jacobian, which is nothing more than a fancy name for “matrix of partial derivatives.”
Do you remember the equation for a straight line from grade school: y=mx+b? m is the slope. It is “change in y / change in x”.
The Jacobian is nothing more than a multivariable form of the slope m. It is “change in y1/x1, change in y2/x2, change in y3/x3, etc….”
You can consider the Jacobian a slope on steroids. It represents how fast a group of variables (as opposed to just one variable…(e.g. m = rise/run = change in y/change in x) are changing with respect to another group of variables.
You start with this here:
You then calculate the partial derivative of the state vector at time t with respect to the states at time t-1. Don’t be scared at all the funny symbols inside this matrix A. When you’re calculating the Jacobian matrix, you calculate each partial derivative, one at a time.
You will have to calculate 9 partial derivatives in total for this example.
Again, if you are a bit rusty on calculating partial derivatives, there are some good tutorials online. We’ll do an example calculation now so you can see how this works.
Let’s calculate the first partial derivative in the upper left corner of the matrix.
and
So, 1 goes in the upper-left corner of the matrix.
If you calculate all 9 partial derivatives above, you’ll get:
which is the identity matrix.
How to Calculate the B Matrix
The B matrix in our running example of a mobile robot is a 3×2 matrix.
The B matrix has the same number of rows as the number of states and has the same number of columns as the number of control inputs.
The control inputs in this example are the linear velocity (v) and the angular velocity around the z axis, ω (also known as the “yaw rate”).
The B matrix expresses how the state of the system (i.e. [x,y,γ]) changes from t-1 to t due to the control commands (i.e. control inputs v and ω)
Since we’re dealing with a robotic car here, we know that if we apply forward and angular velocity commands to the car, the car will move.
The equation for B is as follows. We need to calculate yet another Jacobian matrix. However, unlike our calculation for the A matrix, we need to compute the partial derivative of the state vector at time t with respect to the control inputs at time t-1.
Remember the equations for f1, f2, and f3:
If you calculate the 6 partial derivatives, you’ll get this for the B matrix below:
Putting It All Together
Ok, so how do we get from this:
Into this form:

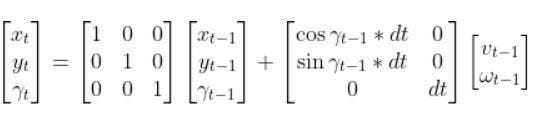

We now know the A and B matrices, so we can plug those in. The final state space model for our differential drive robot is as follows:
where vt-1 is the linear velocity of the robot in the robot’s reference frame, and ωt-1 is the angular velocity in the robot’s reference frame.
And there you have it. If you know the current position of the robot (x,y), the orientation of the robot (yaw angle γ), the linear velocity of the robot, the angular velocity of the robot, and the change in time from one timestep to the next, you can calculate the state of the robot at the next timestep.
Adding Process Noise
The world isn’t perfect. Sometimes the robot might not act the way you would expect when you want it to execute a specific velocity command.
It is often common to add a noise term to the state space model to account for randomness in the world. The equation would then be:
Python Code Example for the State Space Model
In this section, I’ll show you code in Python for the state space model we have developed in this tutorial. We will assume:
- The robot begins at the origin at a yaw angle of 0 radians.
- We then apply a forward velocity of 4.5 meters per second at time t-1 and an angular velocity of 0.05 radians per second.
The output will show the state of the robot at the next timestep, time t. I’ll name the file state_space_model.py.
Make sure you have NumPy installed before you run the code. NumPy is a scientific computing library for Python.
If you’re using Anaconda, you can type:
conda install numpyAlternatively, you can type:
pip install numpyHere is the code. You can copy and paste this code into your favorite IDE and then run it.
import numpy as np# Author: Addison Sears-Collins# https://automaticaddison.com# Description: A state space model for a differential drive mobile robot# A matrix# 3x3 matrix -> number of states x number of states matrix# Expresses how the state of the system [x,y,yaw] changes# from t-1 to t when no control command is executed.# Typically a robot on wheels only drives when the wheels are commanded# to turn.# For this case, A is the identity matrix.# A is sometimes F in the literature.A_t_minus_1 = np.array([[1.0, 0, 0],[0,1.0,0],[0, 0, 1.0]])# The estimated state vector at time t-1 in the global# reference frame# [x_t_minus_1, y_t_minus_1, yaw_t_minus_1]# [meters, meters, radians]state_estimate_t_minus_1 = np.array([0.0,0.0,0.0])# The control input vector at time t-1 in the global# reference frame# [v, yaw_rate]# [meters/second, radians/second]# In the literature, this is commonly u.control_vector_t_minus_1 = np.array([4.5, 0.05])# Noise applied to the forward kinematics (calculation# of the estimated state at time t from the state# transition model of the mobile robot). This is a vector# with the number of elements equal to the number of statesprocess_noise_v_t_minus_1 = np.array([0.01,0.01,0.003])yaw_angle = 0.0 # radiansdelta_t = 1.0 # secondsdef getB(yaw,dt):"""Calculates and returns the B matrix3x2 matix -> number of states x number of control inputsThe control inputs are the forward speed and therotation rate around the z axis from the x-axis in thecounterclockwise direction.[v, yaw_rate]Expresses how the state of the system [x,y,yaw] changesfrom t-1 to t due to the control commands (i.e. controlinput).:param yaw: The yaw (rotation angle around the z axis) in rad:param dt: The change in time from time step t-1 to t in sec"""B = np.array([[np.cos(yaw)*dt, 0],[np.sin(yaw)*dt, 0],[0, dt]])return Bdef main():state_estimate_t = A_t_minus_1 @ (state_estimate_t_minus_1) + (getB(yaw_angle, delta_t)) @ (control_vector_t_minus_1) + (process_noise_v_t_minus_1)print(f'State at time t-1: {state_estimate_t_minus_1}')print(f'Control input at time t-1: {control_vector_t_minus_1}')print(f'State at time t: {state_estimate_t}') # State after delta_t secondsmain()
Run the code:
python state_space_model.pyHere is the output:
And that’s it for the fundamentals of state space modeling. Once you know the physics of how a robotic system moves from one time step to the next, you can create a mathematical model in state space form.
Keep building!
